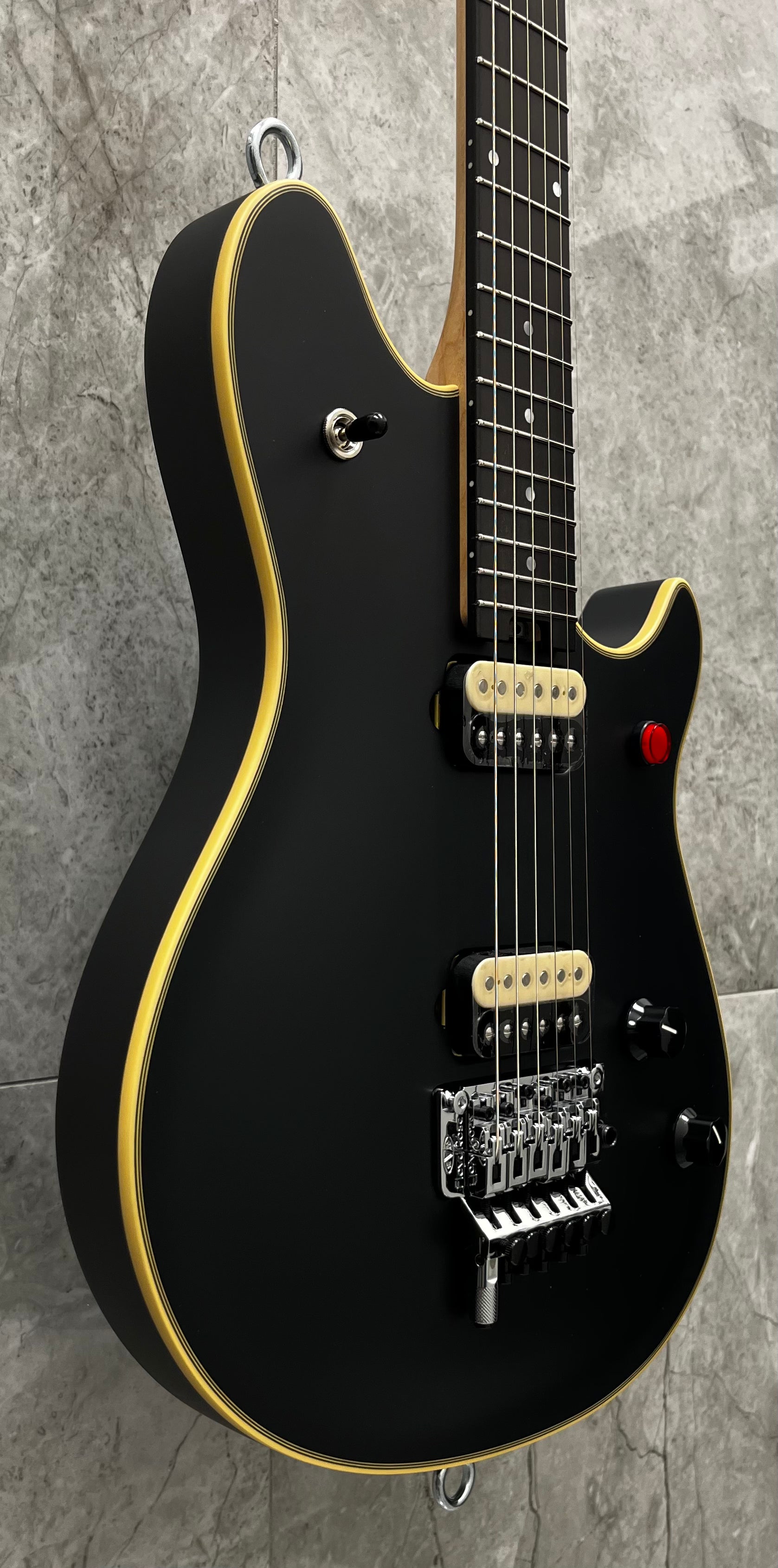

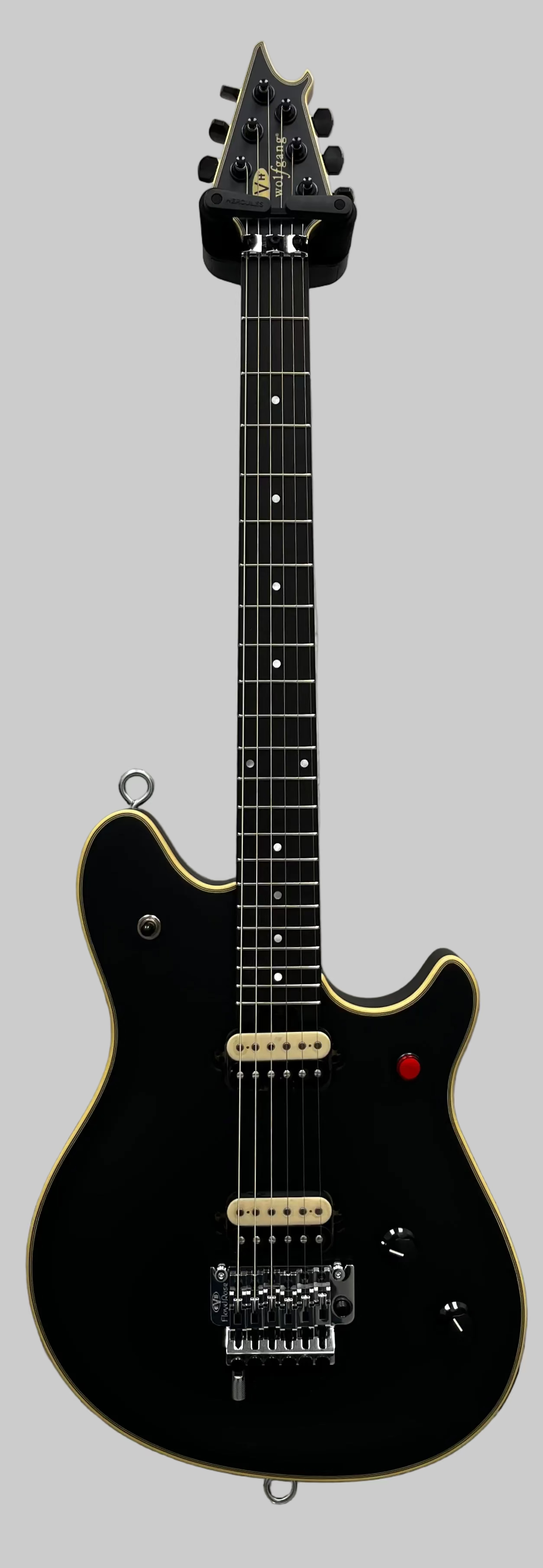

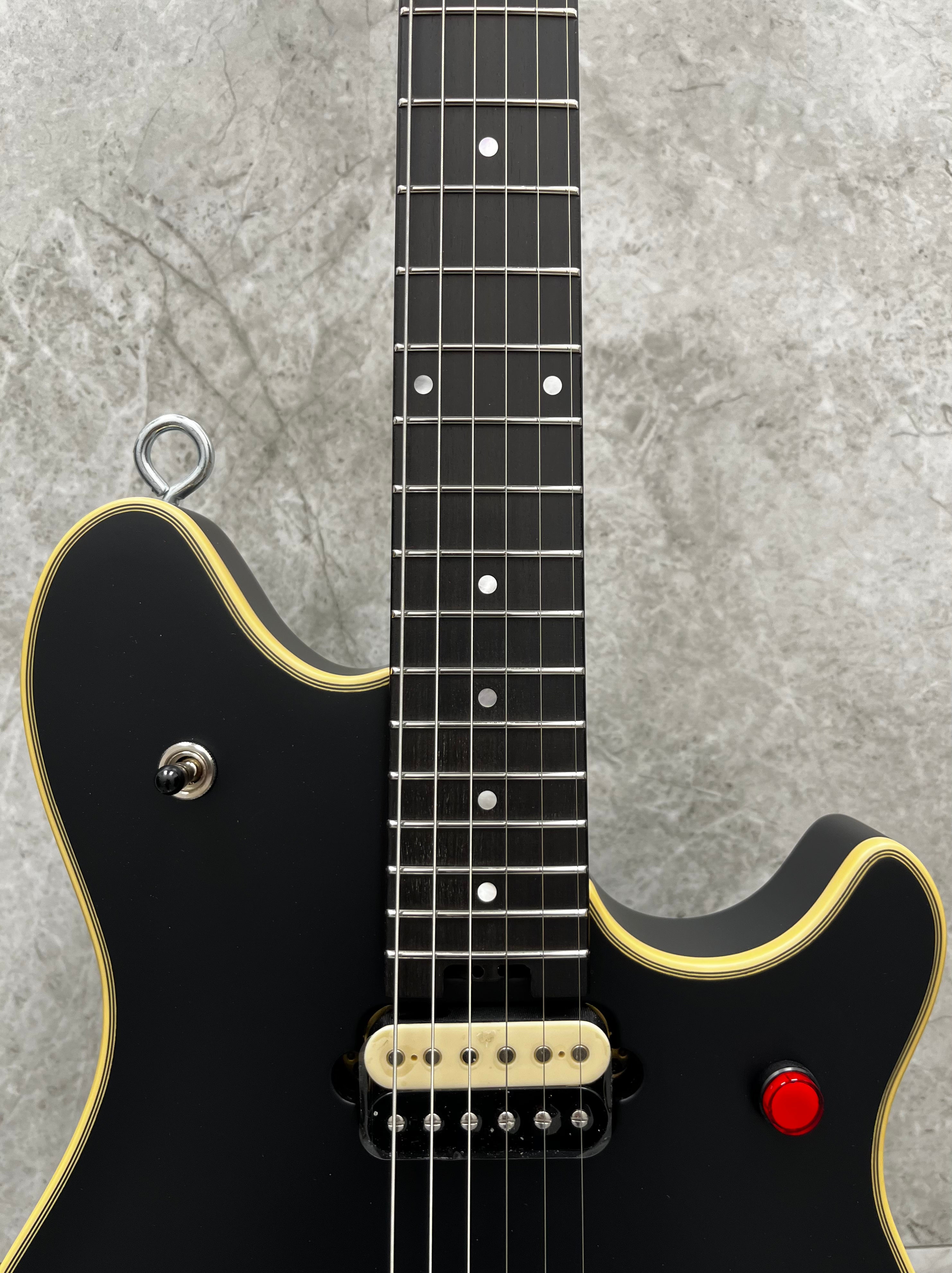

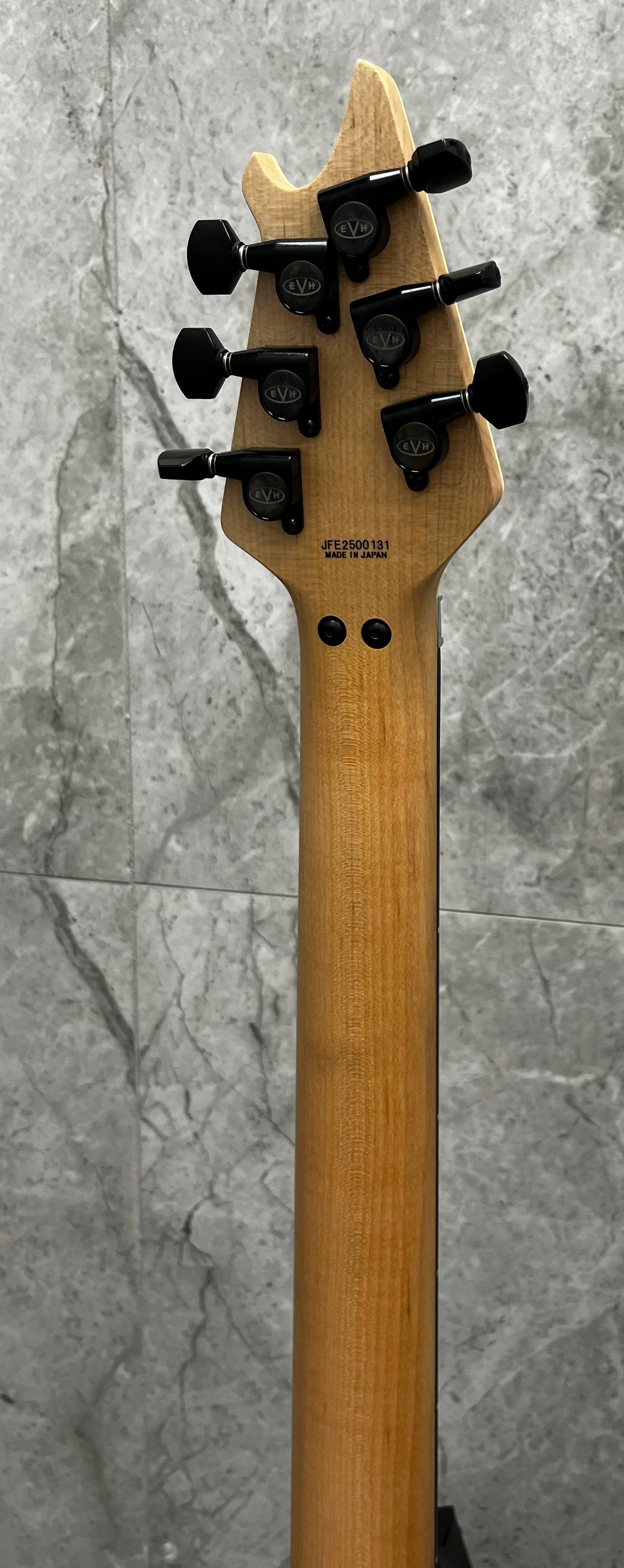

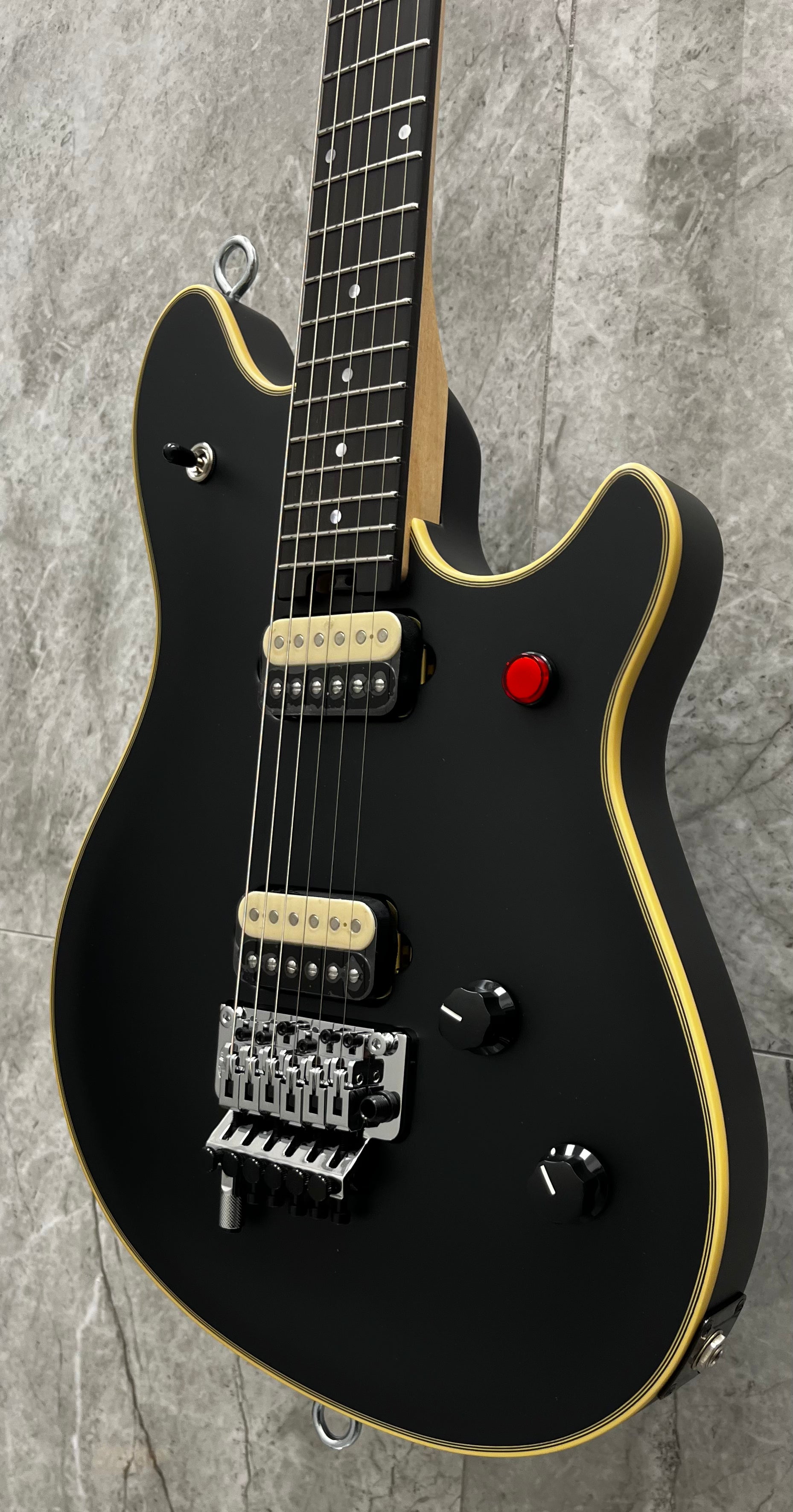

EVH MADE IN JAPAN MIJ Series EVH Signature Wolfgang Ebony Fingerboard Stealth MODEL 5108000868

AVAILABLE TO ORDER Once your order has been placed we will contact the supplier immediately and you will be contacted within 1-2 business days with an expected delivery date.

Exclusively from our team of talented craftsmen in Japan, EVH® brings you the MIJ EVH Signature Wolfgang® model, which comes loaded with Eddie Van Halen’s preferred touring specs and the behemoth and versatile sound expected from an instrument bearing his name.

The basswood body features a big leaf maple top and five-ply binding, while the bolt-on quartersawn maple neck is sculpted to Eddie’s precise specs, with graphite reinforcement for the ultimate protection against climate-induced warping, hand-rubbed satin urethane back finish for smooth, fast playability and a heel-mount truss rod spoke wheel for quicker neck adjustments when needed.

Designed to enhance playing comfort from chords to leads to bends, the 12"-16" compound radius ebony fingerboard has 22 vintage stainless-steel frets.

EVH HARD SHELL CASE INCLUDED

Neck

HEADSTOCK

EVH® Wolfgang®

NECK MATERIAL

Quartersawn Maple

NECK FINISH

Hand-Rubbed Satin Urethane

NECK SHAPE

Wolfgang® Backshape

NECK CONSTRUCTION

Bolt-On with Graphite Reinforcement

NECK THICKNESS

.805" at 3rd & .890" at 12th Fret

FINGERBOARD RADIUS

12"-16" Compound Radius (304.8 mm to 406.4 mm)

FINGERBOARD MATERIAL

Ebony

POSITION INLAYS

Pearl Dot

SIDE DOTS

Pearl

NUMBER OF FRETS

22

TRUSS ROD NUT

Heel-Mount Truss Rod Adjustment Wheel

STRING NUT

Floyd Rose® R2 Locking

NUT WIDTH

1.650" (42 mm)

NUT MATERIAL

Floyd Rose® R2 Locking

Body

BODY

Basswood

BODY FINISH

Satin Urethane

BODY SHAPE

Wolfgang®

BODY TOP

Big Leaf Maple

BODY BINDING

5-Ply

BODY MATERIAL

Basswood

Hardware

BRIDGE

EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®

TREMOLO BLOCK

Brass

PICKUP COVERS

Zebra

CONTROL KNOBS

Black Knurled with White Indicator

SWITCH TIP

Black

HARDWARE FINISH

Chrome

TUNING MACHINES

EVH®-Branded Gotoh®

STRING TREES

Floyd Rose® Retainer Bar

STRINGS

EVH® Nickel Plated Steel (.009-.042 Gauges)

TREMOLO ARM

Floyd Rose® 1000 Series Locking

STRAP BUTTONS

Screw-Eye Hook

Electronics

BRIDGE PICKUP

Direct Mount EVH® Wolfgang® Humbucking

NECK PICKUP

Direct Mount EVH® Wolfgang® AL3 Humbucking

PICKUP CONFIGURATION

HH

CONTROLS

Volume (EVH® BI Tech HPU Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)

SWITCHING

EVH® Reverse-Style 3-Position Switching: Position 1: Neck Pickup, Position 2: Neck and Bridge, Position 3: Bridge

AUXILIARY SWITCHING

Kill Switch
