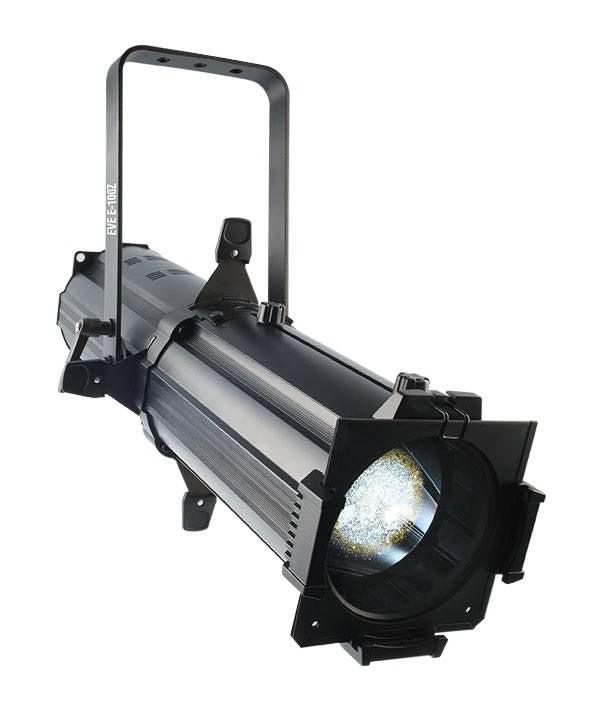

Ellipsoidal 100Z is a powerful spot fixture featuring sharp pattern projection with a 100 W warm white LED light source. This versatile fixture works with metal or glass gobos to create incredible gobo or pattern details. The manual zoom and framing shutters make it simple to control beams.
Features:
- LED Ellipsoidal shines a hard-edged, warm white spot in any direction
- Easily highlight areas by altering the projected beam with framing shutters
- Flexibility to project from any distance using the Manual zoom
- Includes four gobos and gel frame holders for steel or glass gobos
- Save time running extension cords by power linking multiple units
- Eliminate the need for DMX control with standalone operation
Specifications
- DMX Channels: 1 or 3
- DMX Connectors: 3-pin XLR
- Light Source: 1 LED (white) 100 W (2.3 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 30 Hz
- Illuminance: (14°): 15,100 lux @ 2 m
- (30°): 3,800 lux @ 2 m
- Power Linking: 9 units @ 120 V; 16 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 106 W, 0.9 A @ 120 V, 60 Hz
- 103 W, 0.5 A @ 230 V, 50 Hz
- Gobo Size: 66 mm outside, 47 mm image, 2 mm max thickness
- Zoom Angle: (manual): 14° to 30°
- Weight: 12.6 lb (5.7 kg)
- Size: 24 x 7.2 x 16.9 in (611 x 183 x 430 mm)
- Approvals: CE, MET
What's Included
- Ellipsoidal 100Z
- Power cord
- Gel Frame
- Framing Shutters
- Gobo Holders for Glass and Steel Gobos
- Warranty card
