EVH MADE IN JAPAN MIJ Series EVH Signature Wolfgang Ebony Fingerboard, Ivory MODEL 5108000849 SERIAL NUMBER JFE2400118 - 8.4 LBS

IN STOCK - SERIAL NUMBER JFE2400118 - 8.4 LBS

BRAND NEW - ACTUAL PICTURES

Exclusively from our team of talented craftsmen in Japan, EVH® brings you the MIJ EVH Signature Wolfgang® model, which comes loaded with Eddie Van Halen’s preferred touring specs and the behemoth and versatile sound expected from an instrument bearing his name.

The basswood body features a big leaf maple top and five-ply binding, while the bolt-on quartersawn maple neck is sculpted to Eddie’s precise specs, with graphite reinforcement for the ultimate protection against climate-induced warping, hand-rubbed satin urethane back finish for smooth, fast playability and a heel-mount truss rod spoke wheel for quicker neck adjustments when needed.

Designed to enhance playing comfort from chords to leads to bends, the 12"-16" compound radius ebony fingerboard has 22 vintage stainless-steel frets.

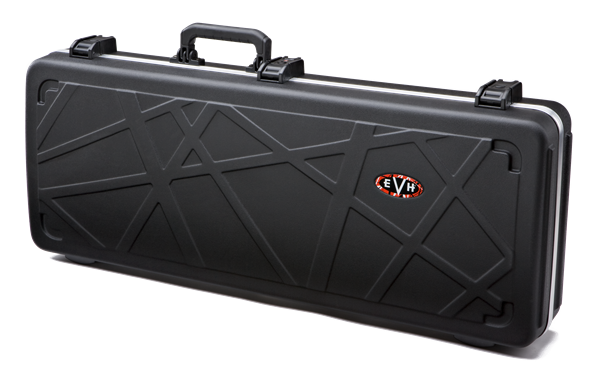

EVH HARD SHELL CASE INCLUDED

Neck

HEADSTOCK

EVH® Wolfgang®

NECK MATERIAL

Quartersawn Maple

NECK FINISH

Hand-Rubbed Satin Urethane

NECK SHAPE

Wolfgang® Backshape

NECK CONSTRUCTION

Bolt-On with Graphite Reinforcement

NECK THICKNESS

.805" at 3rd & .890" at 12th Fret

FINGERBOARD RADIUS

12"-16" Compound Radius (304.8 mm to 406.4 mm)

FINGERBOARD MATERIAL

Ebony

POSITION INLAYS

Pearl Block

SIDE DOTS

Pearl

NUMBER OF FRETS

22

TRUSS ROD NUT

Heel-Mount Truss Rod Adjustment Wheel

STRING NUT

Floyd Rose® R2 Locking

NUT WIDTH

1.650" (42 mm)

NUT MATERIAL

Floyd Rose® R2 Locking

Body

BODY

Basswood

BODY FINISH

Gloss Urethane

BODY SHAPE

Wolfgang®

BODY TOP

Big Leaf Maple

BODY BINDING

5-Ply

BODY MATERIAL

Basswood

Hardware

BRIDGE

EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®

TREMOLO BLOCK

Brass

PICKUP COVERS

Zebra

CONTROL KNOBS

Black Knurled with White Indicator

SWITCH TIP

Black

HARDWARE FINISH

Chrome

TUNING MACHINES

EVH®-Branded Gotoh®

STRING TREES

Floyd Rose® Retainer Bar

STRINGS

EVH® Nickel Plated Steel (.009-.042 Gauges)

TREMOLO ARM

Floyd Rose® 1000 Series Locking

STRAP BUTTONS

Screw-Eye Hook

Electronics

BRIDGE PICKUP

Direct Mount EVH® Wolfgang® Humbucking

NECK PICKUP

Direct Mount EVH® Wolfgang® AL3 Humbucking

PICKUP CONFIGURATION

HH

CONTROLS

Volume (EVH® BI Tech HPU Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)

SWITCHING

EVH® Reverse-Style 3-Position Switching: Position 1: Neck Pickup, Position 2: Neck and Bridge, Position 3: Bridge

AUXILIARY SWITCHING

Kill Switch
