PreSonus® NSB 16.8 Networked Stage Box, Black 2779300201

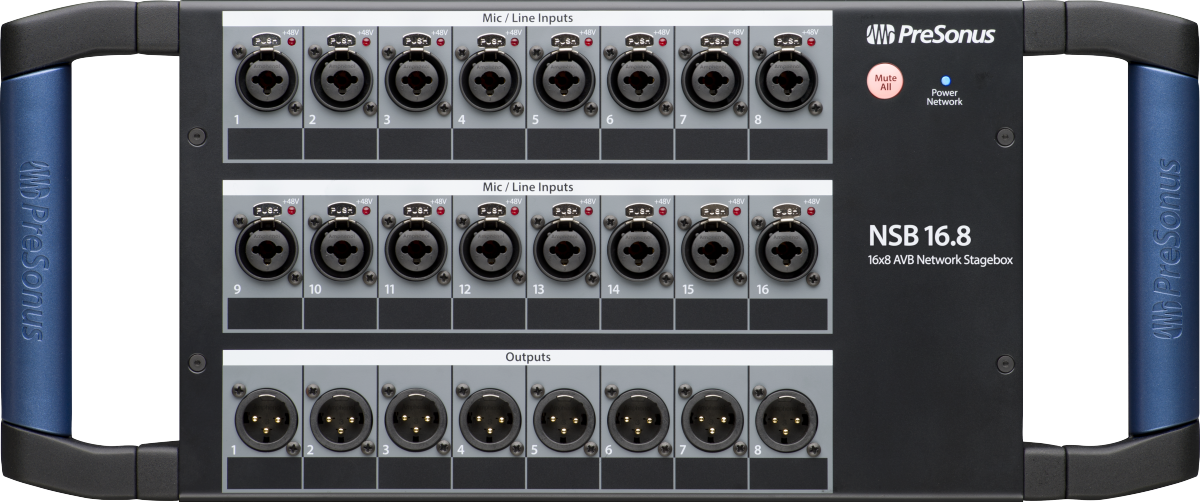

Designed to work seamlessly with PreSonus® StudioLive® Series III mixers, the PreSonus NSB 16.8 stage box offers 16 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared input scenarios. You also get 16 direct inputs via AVB. All inputs can be controlled from a StudioLive Series III console and from free PreSonus UC Surface software. All eight outputs employ locking XLR jacks. A built in 2-port AVB switch lets you daisy-chain multiple units. A rugged steel chassis with sturdy handles and a stage box form factor allow the NSB 16.8 to sit well on the stage and survive the rigors of the road. The unit can be rack mounted with an optional rack-ear kit.

Electronics

Voltage

100-120V

Performance

Digital Audio Dynamic Range

115 dB (A-Weighted, 48 kHz)

Inputs

Line Input Connection Type

1/4" TRS, Balanced

Line Inputs Frequency Response

20-20 kHz (±0.5 dBu at Unity Gain)

Line Inputs Impedance

10 kΩ

Line Inputs Maximum Level

+18 dBu

Line Inputs Signal To Noise Ratio

94 dB

Line Inputs Total Harmonic Distortion

<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted

Microphone Input Connection Type

XLR Female, Balanced

Microphone Preamp Common Mode Rejection Ratio

65 dB (1 kHz at Unity Gain)

Microphone Preamp Frequency Response

20-20 kHz (±0.5 dBu at Unity Gain)

Microphone Preamp Gain Control Range

0 dB to +60 dB

Microphone Preamp Input Impedance

1 kΩ

Microphone Preamp Maximum Input Level

+12 dBu (Unity Gain)

Microphone Preamp Signal To Noise Ratio

94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)

Microphone Preamp Total Harmonic Distortion

<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted

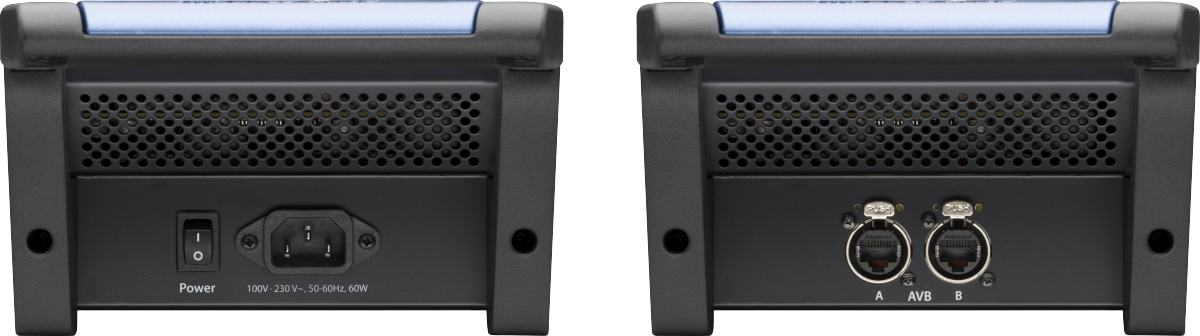

Hardware

Digital Audio AVB Audio Network Ports

Locking XLR Ethernet
