The all-tube Traynor YBA300 300-watt bass head has been designed from the ground up to be the ultimate high-power head for the working musician. Built for unmatched reliability in real world heavy-use touring environments, the designers of the YBA300 understand how important it is to make sure your amp is ready for action every night.
Reliability

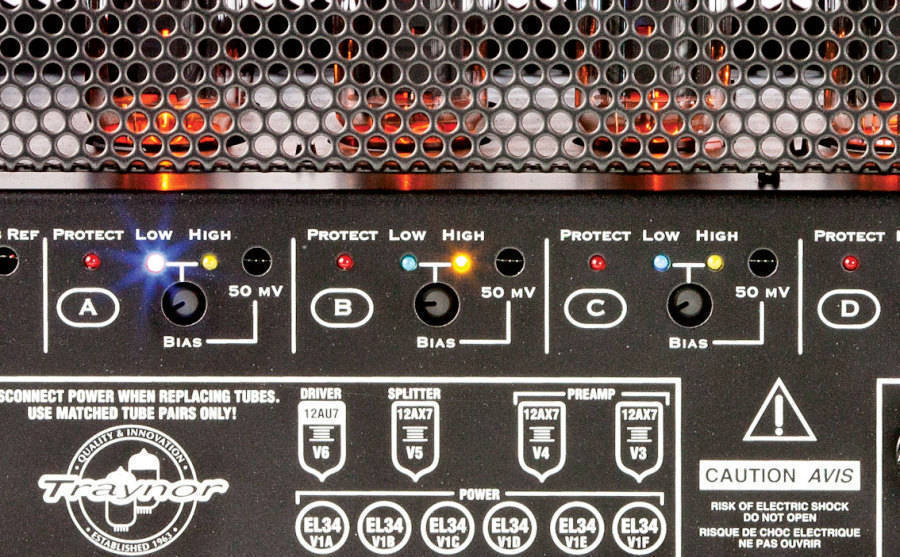

Highly effective and straightforward tube bias adjust with clear and concise LED display ensure any player can easily adjust pairs of the YBA300's power tubes without fear. LED indicators on the rear of the amp show proper tube function and status. In rare cases where a tube may fail, the YBA300 will lock out the problem tube and its partner, allowing the amp to finish the show on the remaining active tubes. LED display clearly shows which tube needs service.
Versatility
The stock YBA300 ships with twelve hand-selected and tested 6L6 power tubes, delivering a truly classic hi-fi smooth tube tone. For players looking for a more aggressive bass sound, the stock 6L6 tubes can be easily changed to any high quality EL34 tube set and be rebiased in the field, making the YBA300 essentially two amps in one versatile chassis.
Simple controls make it easy to dial in virtually any bass tone.
The Traynor YBA300 is made in Canada using solid plywood cabinet construction, heavy gauge steel chassis, high quality pots and jacks and is covered by Yorkville Sound's two-year unlimited warranty*.
Specifications:
• Type: All Tube Bass Head
• Power @ min. impedance (Watts): 300 @ 2/4 ohms switchable (250W into 8 ohms)
• Minimum Impedance (Ohms): 2
• Burst Power - 2 cycle: 400 Watts
• Frequency Response (Hz +/-3dB): 30 - 16,000
• Hum and Noise (dB): -90db
• Inputs: 1
• Channel 1 - Inputs: 2 x 1/4inch
• Channel 1 - Controls: Gain
• Master Volume Control: Yes
• Main Tone Controls: Treble, Mid, Frequency, Bass
• Input Sensitivity (mV): 20
• Master Outputs: Pre-amp out (Pre Master)
• Line Out (type / configuration): XLR Balanced (Pre/Post, Grnd Lift)
• Line Out Sensitivity (Vrms): 200
• Effects Loop / Location : Pre-amp out, Power Amp in, Loop Thru
• Effects Return Sensitivity (Vrms): 1
• LED Indicators: Power/Standby
• External speaker output / location: 2 x 1/4inch, 1 Speakon (Rear)
• Other Features: Bright, Deep & Resonance Switches
• Impedance Selector: (2/4 ohms)
• Tubes: 3x12AX7, 1x12AU7, 12x6L6
• Tuner output: 1/4inch
• Dimensions (DWH, inches): 11.5 x 24 x 10
• Dimensions (DWH, cm): 29 x 61 x 25.4
• Weight (lbs / kg): 51 / 23
Features:
• 300 Watt All-Tube Bass Amp
• Delivers Maximum Power at 2 or 4 ohms
• Comes Stock with 3 x 12AX7, 1 x 12AU7 and 12 x 6L6 Tubes
• 6L6 Power Tubes Can Be Swapped for EL34 Tubes for Different Amp Character
• Player Friendly Individual bias adjust with indicator LEDs for Output Tubes
• Tube Lockout for each Pair of Output Tubes removes damaged tubes from signal path allowing amp to continue operation in emergencies)
• Simple and Effective Gain, Bass, Sweep-Mid, Treble and Master Controls
• Deep, Bright, Resonance Tone Shaping Controls
• Pre/Post EQ DI Output, Effects loop, Tuner Output
• High and Low Level Inputs for Active or Passive Basses
• 1/4-inch and Speakon Output Connectors
• Made In Canada
